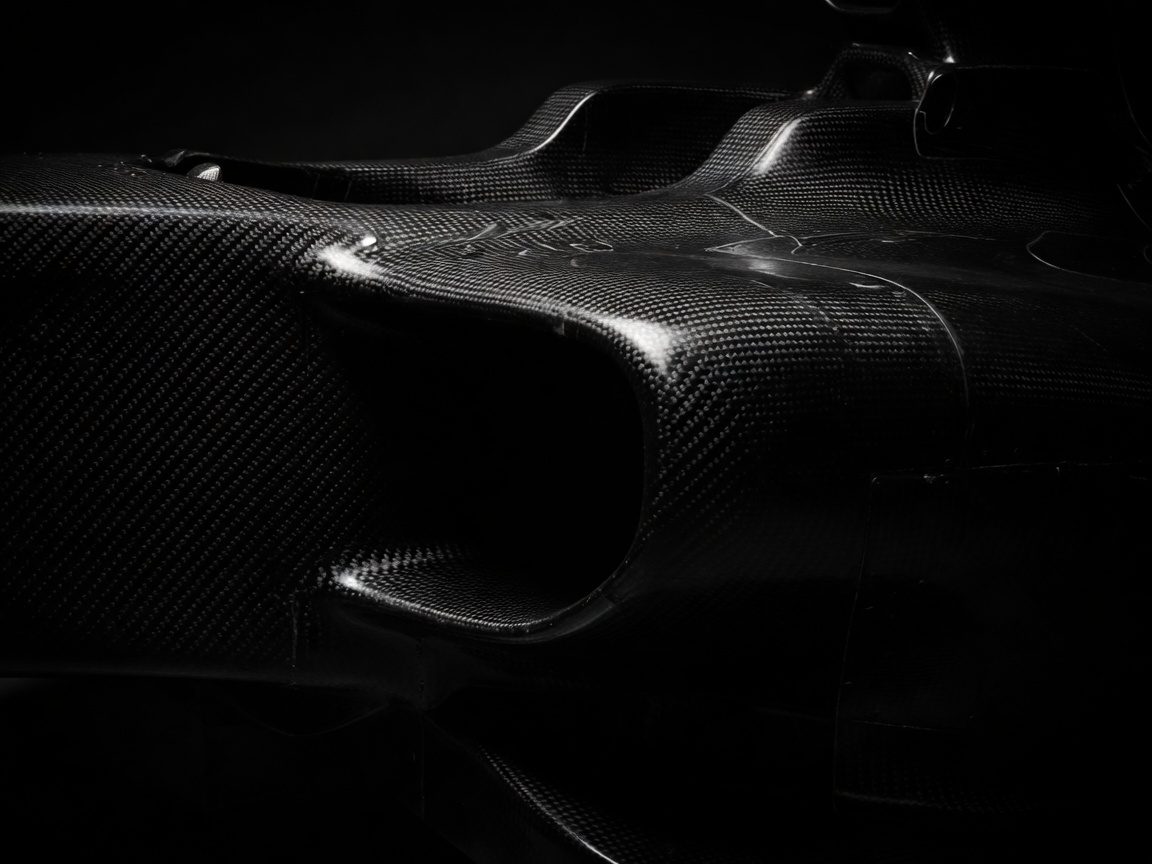

AEROGRID MONOCOQUE TUB & ACTIVE AERODYNAMICS
Autoclave-cured T1000 carbon fiber monocoque combined with dynamic ground-effect venturi channels for unmatched aerodynamic grip.
AERODYNAMIC PHILOSOPHY & CARBON LAYUP
The AeroGrid chassis combines pre-impregnated intermediate modulus carbon weave with localized high-modulus unidirectional reinforcements around suspension pick-up hardpoints. Manufactured in our cleanroom autoclave at 7.2 bar pressure, the resulting tub achieves extreme impact absorption compliance according to modern FIA safety criteria.
Active Diffuser and Flow Control
Traditional aerodynamic drag spikes at straight-line velocities are mitigated via active aerodynamic winglets and hydraulic floor fences. When straight-line vehicle velocity exceeds 220 km/h, the rear diffuser flaps subtly tilt by 4 degrees, bleeding off excess aerodynamic drag while preserving critical high-speed downforce balance.
| Structural Parameter | Value |
|---|---|
| Total Monocoque Mass | 142 kg (Bare Tub including Roll Hoop) |
| Torsional Rigidity | 71,500 Nm/degree |
| Aerodynamic Efficiency (L/D) | 3.85 at 200 km/h |
| Ground-Effect Suction Pressure | -4.2 kPa under undertray throat |
| Autoclave Cure Cycle | 180°C / 7.2 Bar / 6-hour dwell |
FABRICATION COMMISSIONS
Custom seat inserts, pedal box positions, and roll-cage geometries are tailored specifically to your pilot ergonomics.
Request CAD Model Access
